RedefiningDashcam Design.
Designed in the form of a set-top box, intended for seamless concealment and comprehensive protection.
Powerful Two-Factor Protection.Hidable Box. Tamper-Proof.
The design of the set-top box is made to be concealed, and the main unit, recording box is equipped with tamper-proof features to secure recorded footage.
Perfectly Conceal

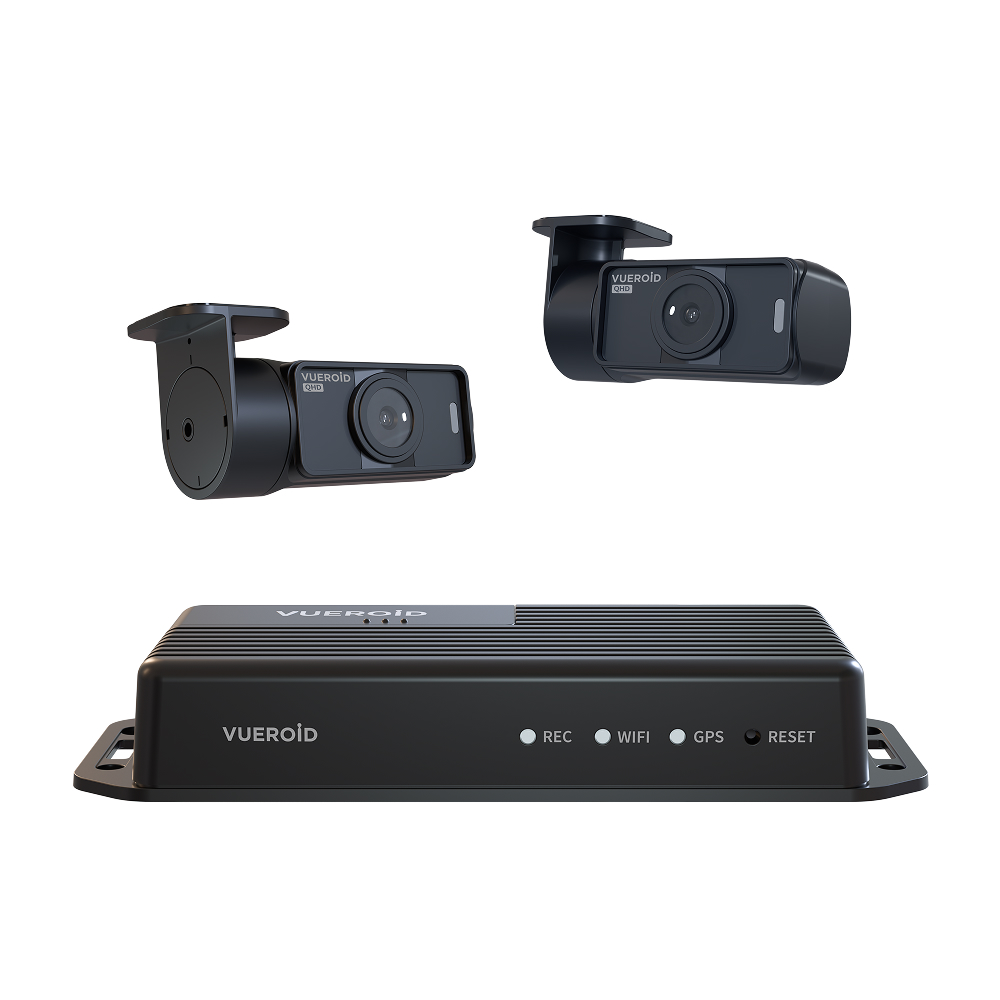

Unlike the conventional dash cams, the camera and recording unit are separated, allowing the recording unit to be discreetly installed in the vehicle’s glove compartment or under the seat, out of sight from outsiders. Additionally, the micro SD card slot is placed in a separate recording box rather than in the front camera, ensuring secure storage of the footage.
365 Securing Footage
The recording box is designed to prevent unauthorized access, disconnection of power, and cable removal for the Micro SD card.
Small Yet Mighty Capture.Stealthy. Vividly.
Smaller Than Credit Card Size
The pocket-sized camera is designed to seamlessly blend with the vehicle’s interior, remaining inconspicuous to potential thieves while capturing crucial moments precisely.
Capturing Sounds Vividly
The front camera is included with a microphone, capturing all sounds vividly. This ensures precise audio recording during accidents, providing an accurate account of the situation.
Brilliantly Clear,Stunning QHD.
Can’t leave out the Detail.
Sleep
& Wake Up
It consumes minimal power to keep your car safe during parking, ensuring no critical moments are missed.
*Engine off > Sleep Mode > Event > Wake Up >
Recording (30sec) > Monitoring (30sec) > Sleep Mode
Format
Free
Video files are stored and overwritten in an optimized sequence, efficiently extending the memory card’s lifespan and eliminating the need for storage maintenance.
Vehicle Battery
Protection
When the battery voltage falls below the preset voltage, the power of dashcam automatically cut off to protect the battery.
Tracking Driving
History
Enabling tracking of your driving history through detailed location, speed, and time data of your vehicle on the Vueroid App or PC Viewer.
Easy
File Transfer
With dual-band 2.4/5GHz Wi-Fi connectivity, you can easily and quickly download the footage you need directly to your device.
Analyze Event
Footage
You can play videos using the dedicated PC viewer and adjust the playback speed to examine important scenes closely. You can also check your vehicle’s Value of Driving Speed, G-sensor data, and Location History on the map.
What’s in the Box.
Main Unit | Front Camera | Rear Camera | Hardwire Kit 3M | Camera Cable 2EA | External GPS | Screws for Main Unit 4EA | Scresw for Tamper-proof cover 2EA | Allen Wrench | Foam Tape for Front/Rear (1EA/each) | Cable Tie 4EA | Cable Clips 6EA | Hook and Loop Fastener | Quick Guide Manual
Specification.
| CIS/Resolution | Front / Rear : QHD SONY Starvis 5M (IMX335) (2,560 x 1,440 @ 30fps) |
| View Angle | Front/ Rear: (D)134° x (H)113° × (V)61° |
| Memory Card | Micro SD Card (16GB/ 32GB/ 64GB/ 128GB/ 256GB) |
| Wi-Fi | USB Wi-Fi |
| GPS | External GPS |
| LED Indicators | Front: Security LED/ Rear: Security LED Main Unit: REC, Wi-Fi, GPS Status LED |
| G-Sensor | 3-Axis Acceleration Sensor, +2g/ -2g |
| Speaker | Built-in Speaker (Voice Guide) |
| Microphone | Built-in Microphone |
| Video Codec | H.264 High Profile |
| Recording Mode | Normal / Event/ Manual/ Parking(Motion & Time lapse) |
| Dimensions/ Weight | Front: 67.6mm(W) × 32.7mm(H) × 26.7mm(D) / 25g Rear: 67.6mm(W) × 32.7mm(H) × 26.7mm(D) / 25g Main Unit: 130mm(W) × 49.0mm(H) × 21.0mm(D) / 95g |
| Power Input | DC 12V-24V |
| Power consumption | Max. 5.4W(12V) |
| Operationg Temp. | -20℃ ~ 70℃ (-4℉ ~ 158℉) |
| High Temp. Cut-off | Approximate 70℃ (158℉)/ Battery Discharge prevention |
HDR
VUEROID HDR Technology is integrated to eliminate light blurring while driving at day and night, producing clear and vivid recordings even in challenging lighting conditions such as backlighting and in tunnels.
Night Vision
NIGHT VISION automatically diagnoses the surrounding brightness. If illumination is too low, it adjusts brigtness for optimal video quality.
3D NR(Noise Reduction)
It reduces noise commonly found in low-light environments by comparing the current image with the previous one, delivering clear and identifiable footage.
