CORNER VISION
Broaden Your Vision, Minimize Risk
Satisfied with EU road safety regulations

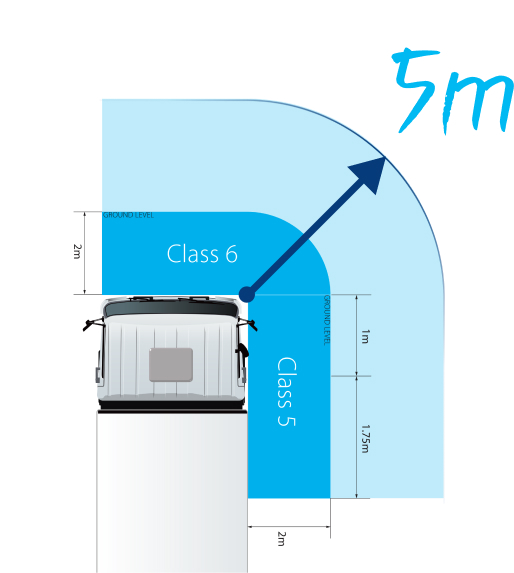

Covers Ground Level of Class V & VI
CVD-H210 covers the entire frontal and frontal-corner areas of heavy vehicles up to 5 meters easily using a wide-angle camera. This ensures that drivers have a clear view of Classes V and VI areas, satisfying EU safety regulation.
FHD 205° Ultra Wide Angle
Capturing Blind Spots at A Glance
A wide angle of view can lead to distortions in the image, causing side effects such as a loss of depth perception. However, VUEROID addresses this issue by implementing the LDC (Lens Distortion Correction) algorithm within its owned ISP to minimize distortions associated with lens characteristics.

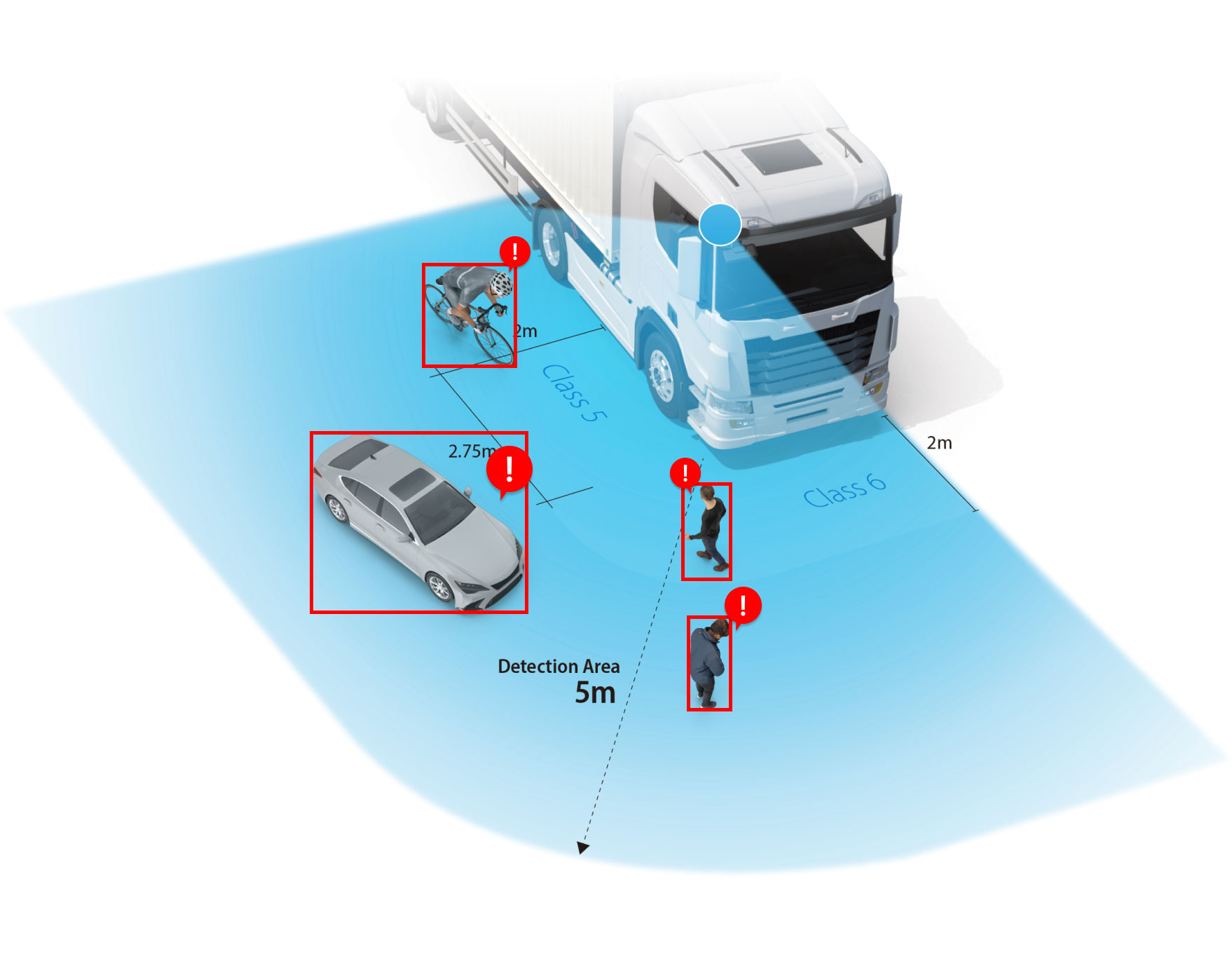

Smart AI Detection & Alarm
Detecting Pedestrians, Bicycle & Car
Deep learning-based AI detection demonstrates high accuracy in detecting pedestrians and vehicles, providing drivers with visual and audible alarms to assist them in maneuvering before potential accidents occur.
Pedestrian
Vehicles
Motorcycles

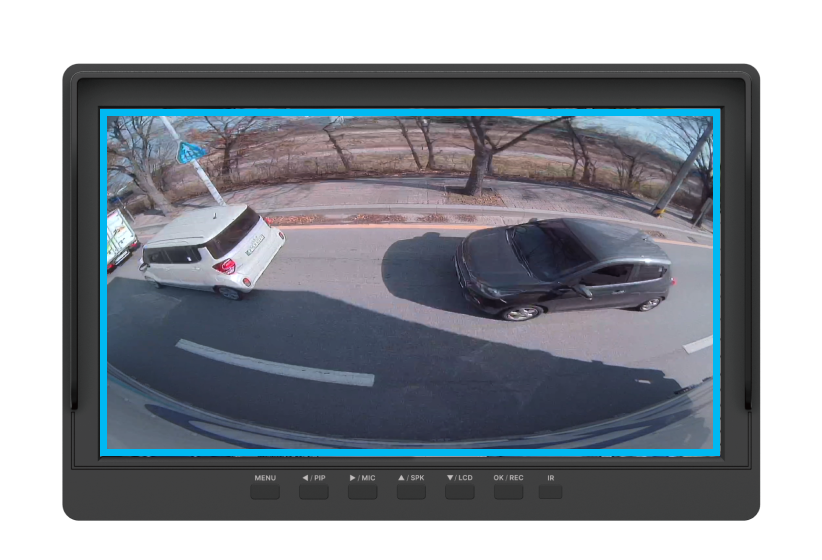

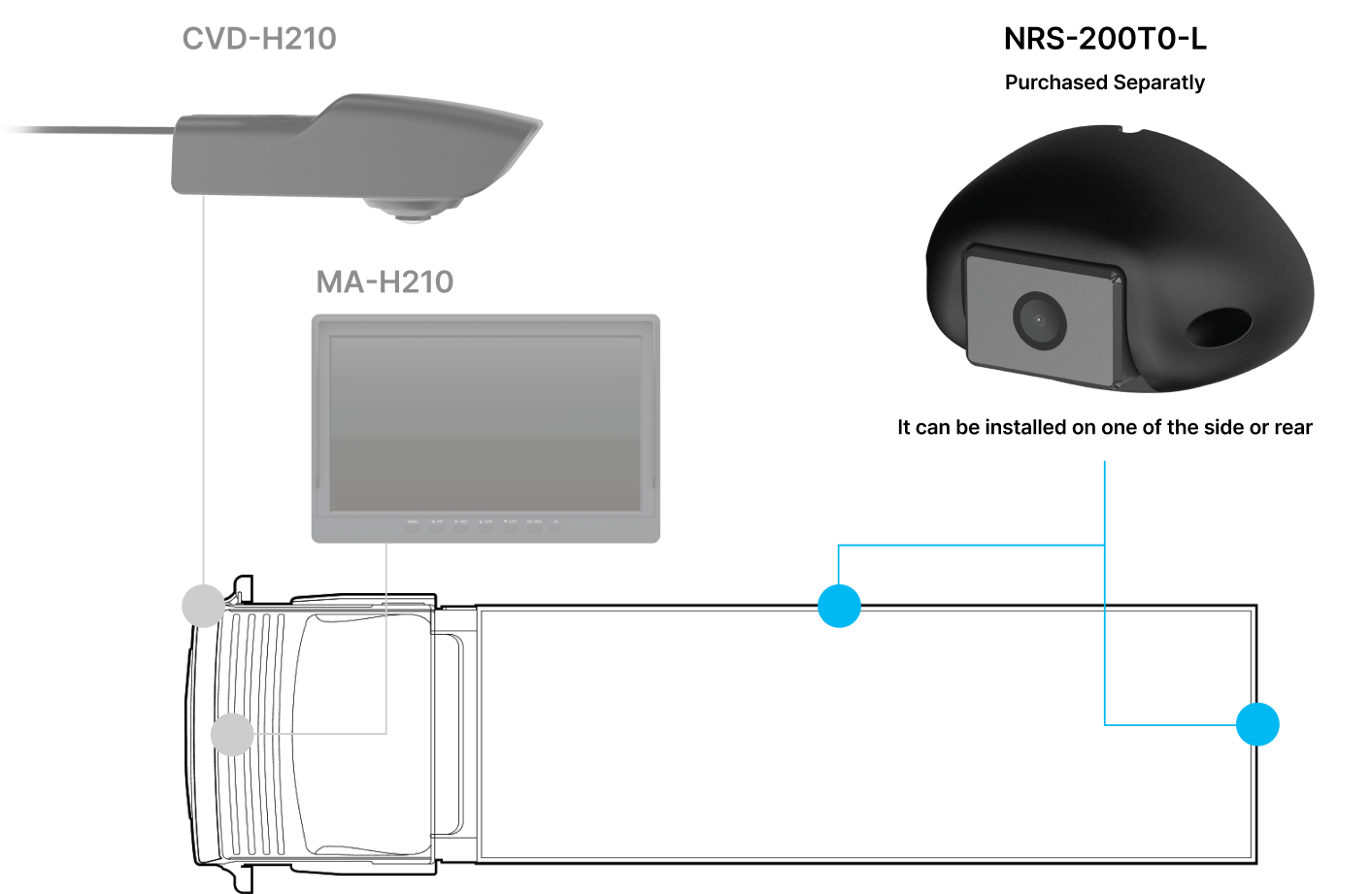

Option Camera
Rear or side Mount it your way
CornerVision supports a dedicated optional camera that can be mounted on the side or rear. With a 180-degree wide-angle view, the optional camera helps you see more blind spots for enhanced safety.
Various Recording Modes
Ready at All Times to Capture Evidence
Corner Vision supports various recording modes such as driving, event, and manual recordings, and also provides a dedicated viewer for recorded videos.
Driving Recording
Event Recording
Manual Recording
Parking Recording
Motion Recording
Time Lapse
Perfectly equipped with
Unrivaled image quality and durability
Components
Sold Separately
Specification
| Camera Sensor | Coner Camera(CN-F308) | Sony Starvis(IMX307) |
| Rear Camera(NRS-200T0-L) | Sony Starvis(IMX307) | |
| View Angle | Coner Camera(CN-F308) | (D)205°×(H)205°×(V)163° |
| Rear Camera(NRS-200T0-L) | (D)180°×(H)180°×(V)115.2° | |
| Memory Card | Micro SD Card (32GB / 64GB / 128GB) | |
| GPS | External GPS | |
| G-Sensor | 3-Axis Acceleration Sensor, +2g / -2g | |
| Speaker | Built-in Speaker | |
| Microphone | Built-in Microphone | |
| Video Codec | H.264 | |
| Recording Mode | Normal/ Event/ Manual/ Parking (Motion, Time Lapse, Power Saving Mode) |
|
| Dimension/ Weight | 10.1" Monitor | 252×185×117mm / 810g |
| Coner Camera(CN-F308) | 127.8×59×89mm / 250g | |
| Rear Camera(NRS-200T0-L) | 42.4×30×42.9mm / 120g | |
| Power Consumption | DC 24V/ 0.45A (AVG) | |
| Operation Temp. | -10℃ ~ 60℃ ( -4℉ ~ 158℉) | |

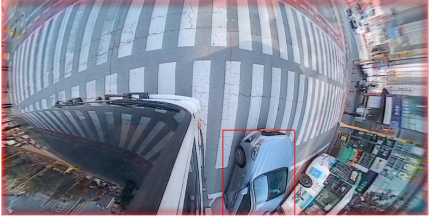

Distortion-Corrected Wide View By LDC Algorithm
The distortion caused by the structural design of wide-angle lenses can lead to side effects such as a loss of depth perception. By applying VUEROID CV’s exclusive LDC technology, video distortion caused by lens characteristics is minimized.
Corner Vision VS Normal
Corner Vision VS Convex Mirror

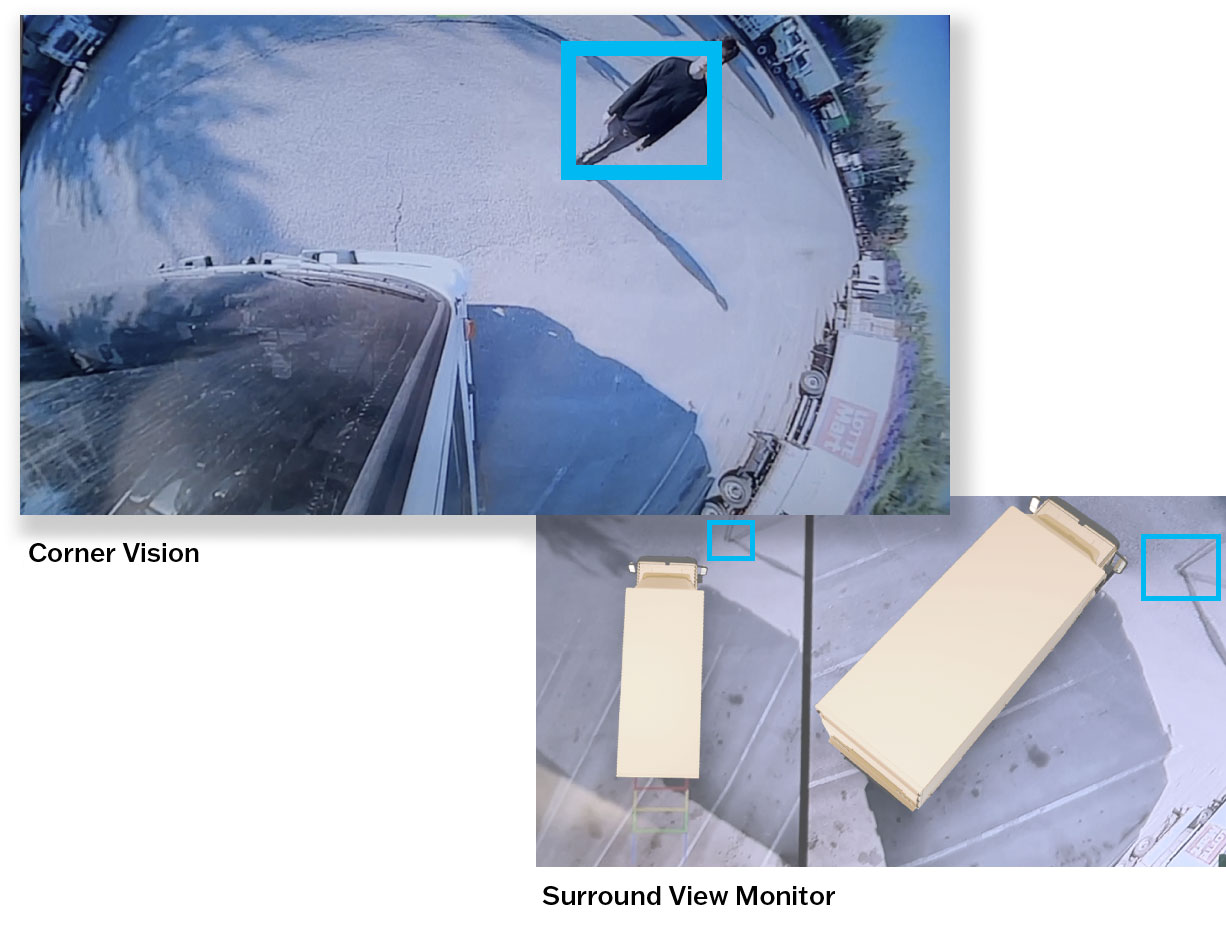

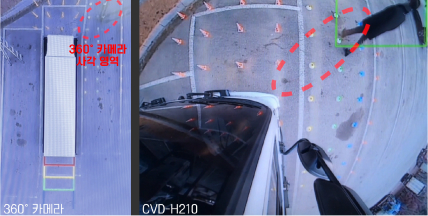

Corner Vision VS 360 Surround View

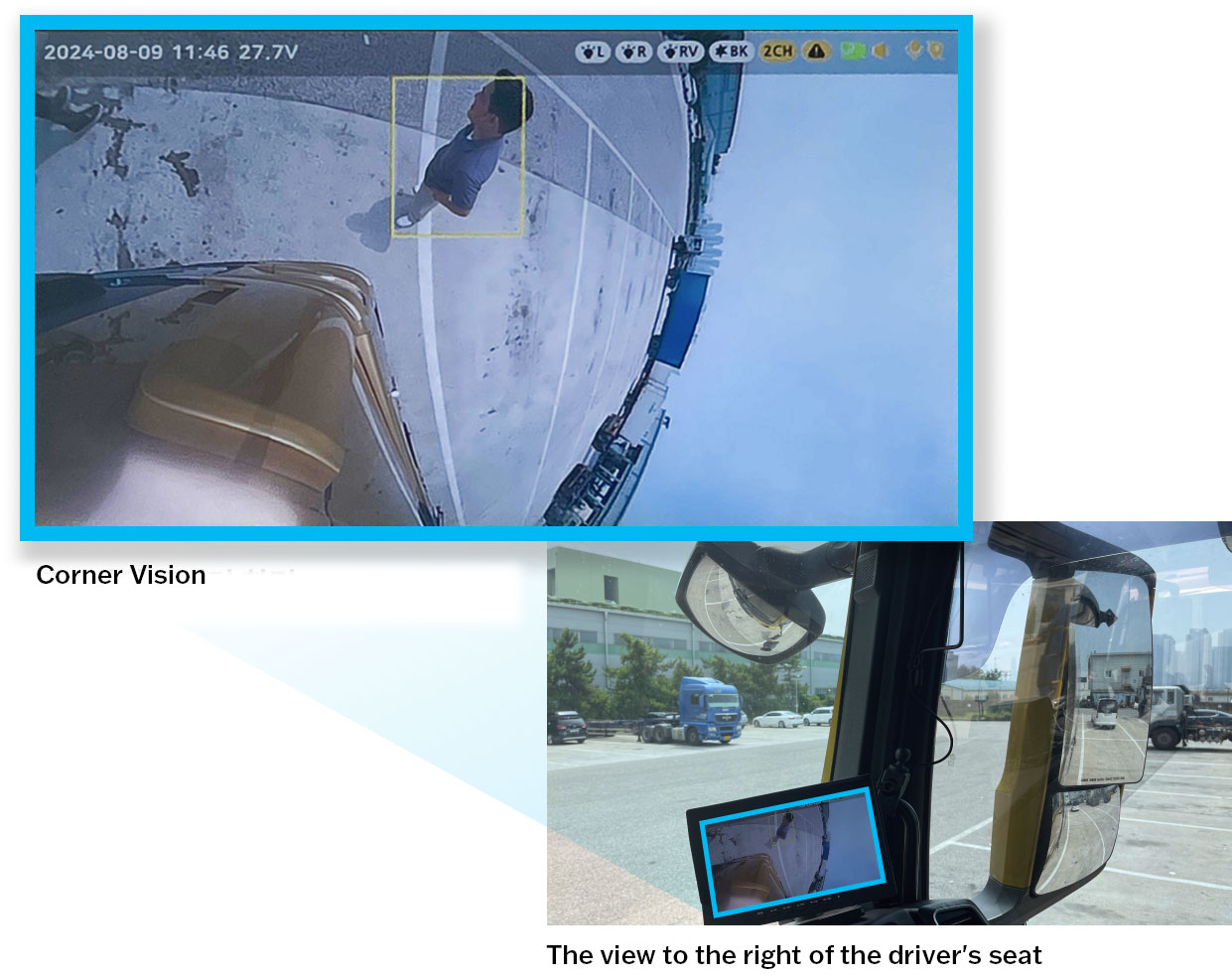

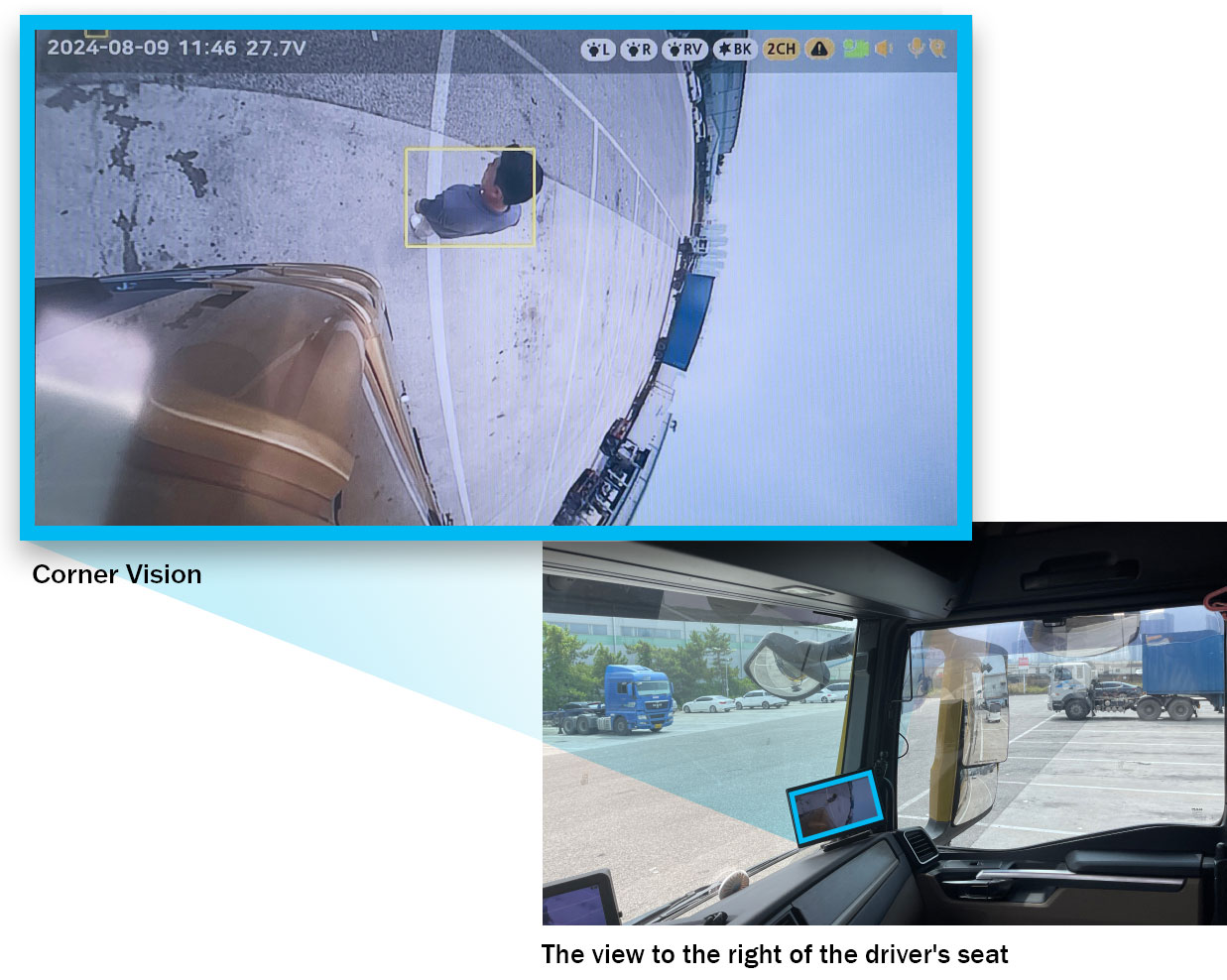

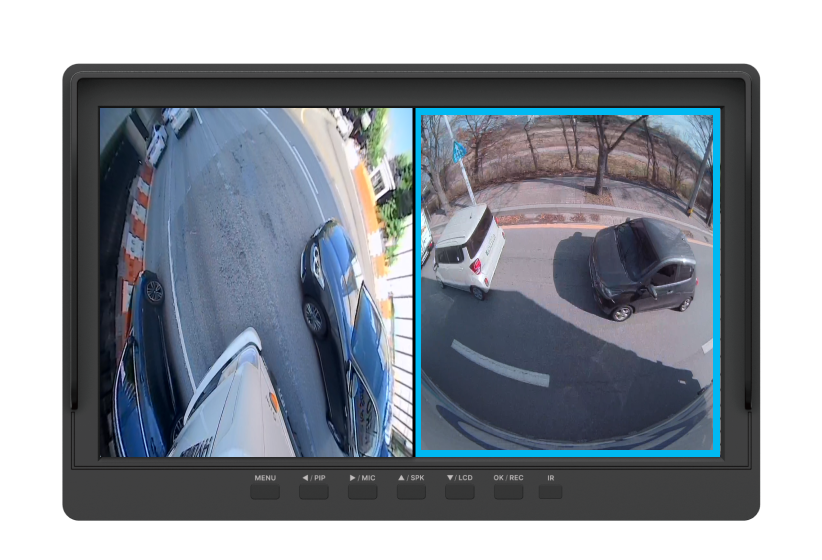

How will it be displayed?
Corner Vision
Corner Vision + Side Camera (Option)

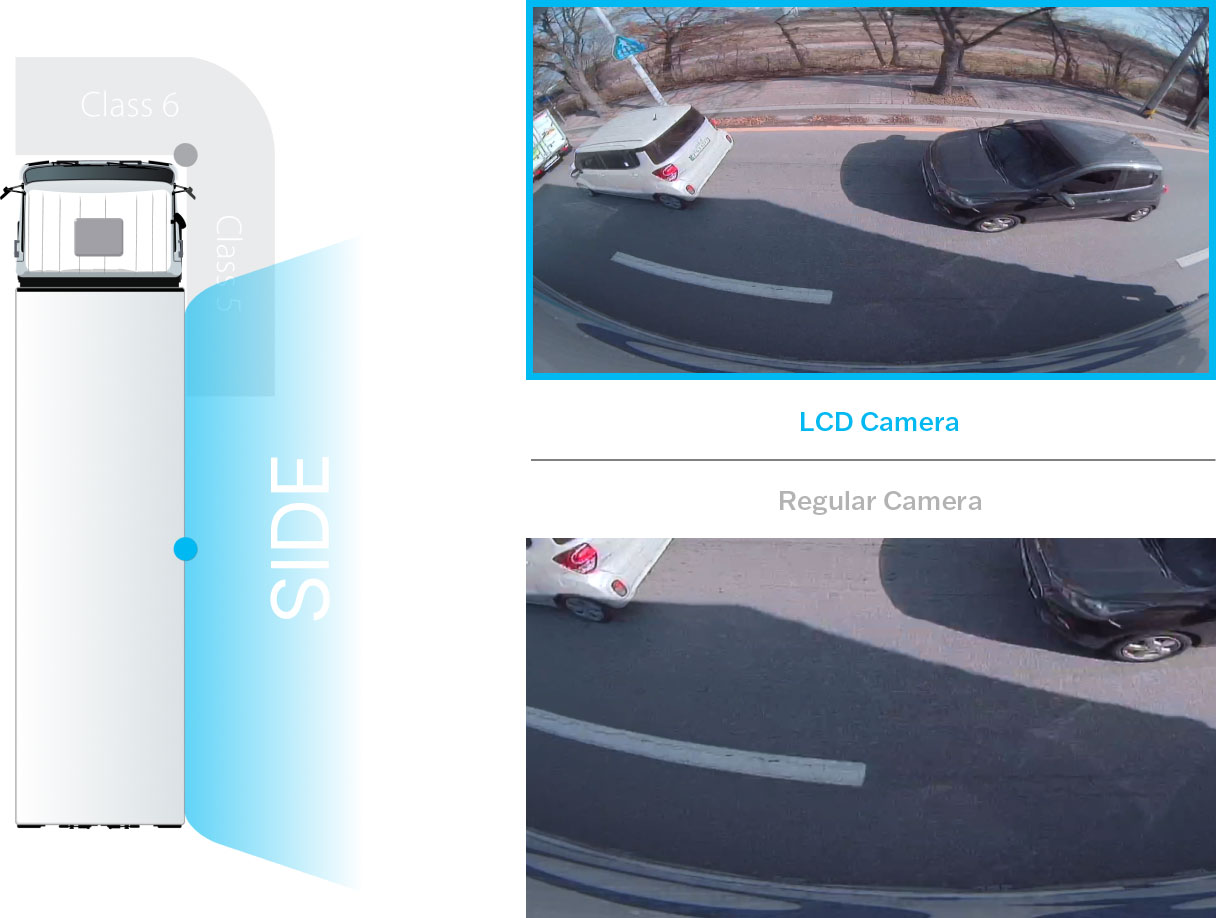

As Side Camera
Enhance The Safety In The Blind Spot
When it installed as a side camera, the cover area extends from frontal and frontal-corner areas covered by the CVD-H210 to the entire side of the truck, enhancing blind spot safety.

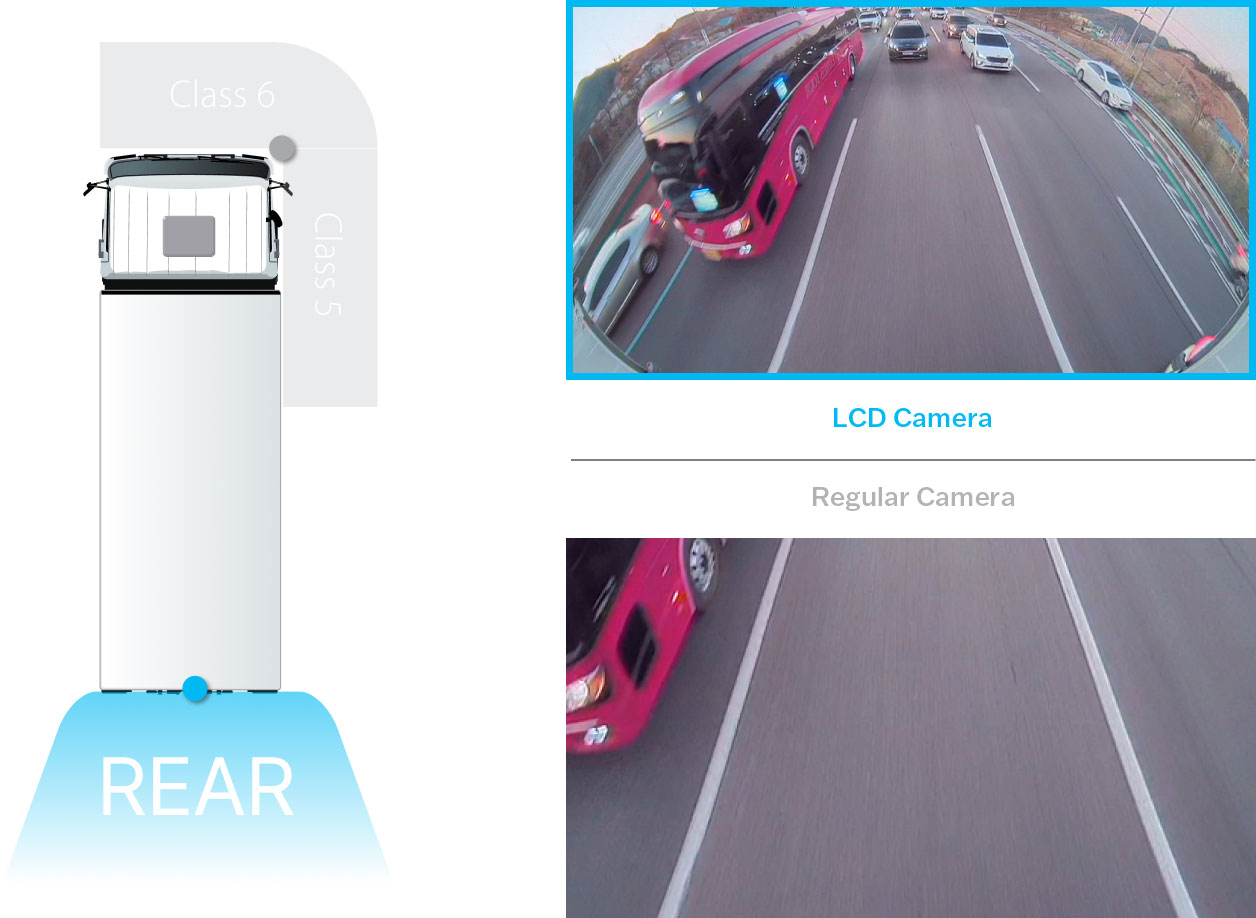

As Rear Camera
Secure Long-Range Visibility
When installed as a rear camera, it enables the recognition of objects from the starting point of the truck’s rear to exceeding 20 meters, ensuring safety.
